time-varying queuing network for ASEAN free-route airspace

22 December 2023

Untangling Complexity in ASEAN Air Traffic Management through Time-Varying Queuing Models
E Itoh, K Tominaga, M Schultz, VN Duong. Aerospace 204, 11, 11

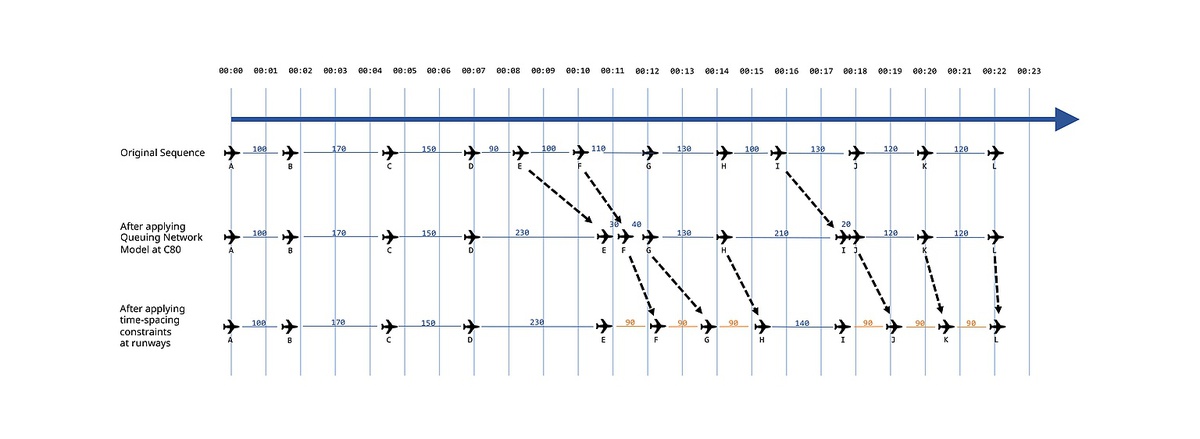

Free route airspace allows airspace users to freely plan a route in en-route airspaces within certain restrictions. It is anticipated to offer the benefit of fuel saving and operational flexibility. Regarding its efficient implementation into the ASEAN airspace, the key challenge would be reducing hotspots with clusters of potential conflicts. This paper designed a time-varying queuing network model, which contributed to untangle trajectory complexity in the most congested hotspot area. A series of fast-time simulation experiments were conducted to identify hotspots in en-route airspace in Singapore FIR. The application of departure time control using time-varying queuing networks successfully reduced up to 45% of potential conflicts. This was achieved within an average delay of 30 min by controlling time of less than 60% of candidate flights. The original contribution of this paper is to develop a novel modeling and simulation framework for composing ideal air traffic patterns. Lastly, we discussed the extension of this study toward a generalized application of the proposed approach in future air traffic management.
